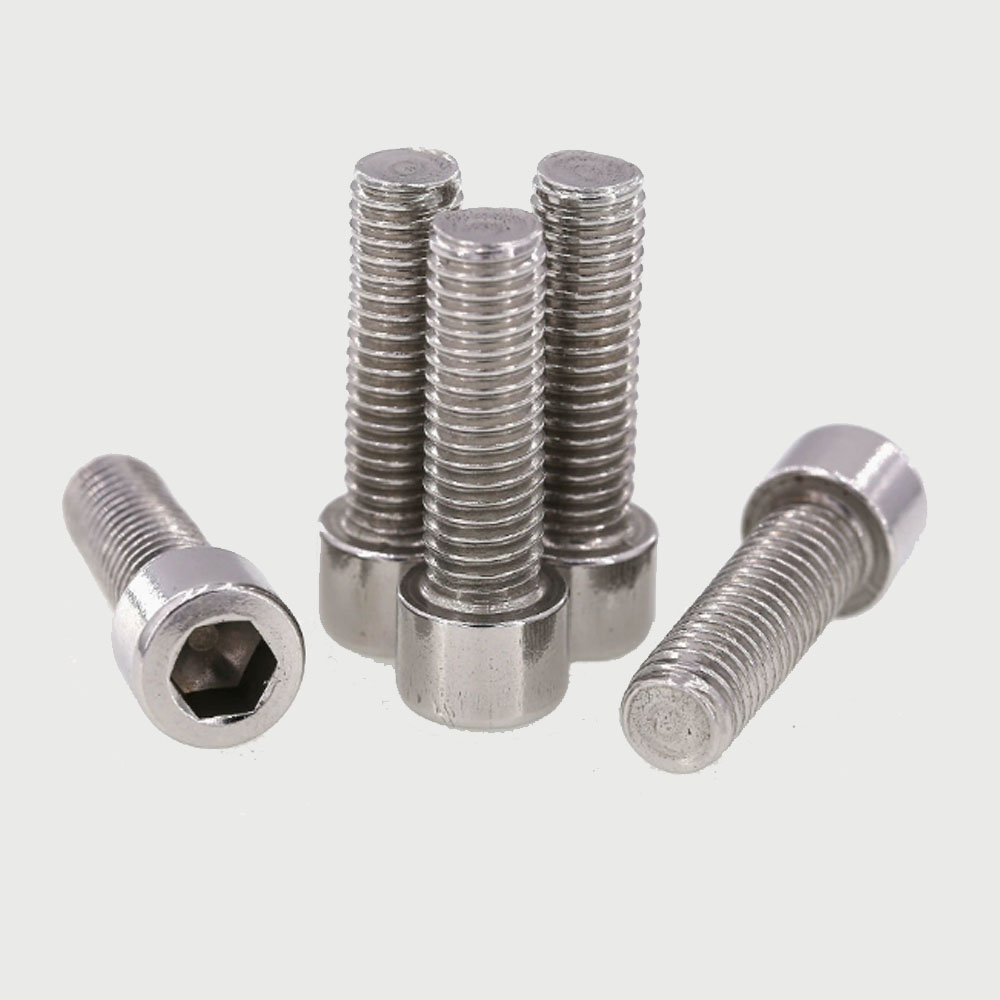

Hex Socket Bolt

Standard: DIN 912
Thread Type: Coarse Thread, Partial Thread
Commodity: Hex Socket Bolts
Also Named: DIN 912 Allen Bolt
Material: Carbon Steel
Property Class: 8.8、10.9、12.9
Diameter: M1.4/ M1.6/ M2/ M2.5/ M3/ M4/ M5/ M6/ M8/ M10/ M12/ (M14)/ M16/ (M18)/ M20/ (M22)/ M24/ (M27)/ M30/ (M33)/ M36/ M42/ M48/ M56/ M64/ M72/ M80/ M90/ M100
Finish: Plain, Black Oxide, Zinc Plated, Hot Dipped Galvanized, Oxidation, Dacromet, Phosphating, Cadmium Electroplate, Nickel Plated
Head Type: Socket Head
Drive Type: Hexagon Socket
Alternative Standard: GB /T 70.1, ISO 4762, DIN EN ISO 12474, ANSI/ASME B 18.3.1M, UNI 5931, NF E 25-125, AS 1420



分类：

ADVANTAGES OF HEX SOCKET BOLTS

1. The head shape of the Allen cap screw can bear a larger load.

2. Since the head needs to be embedded in the parts, the connection strength of the hex socket bolts is greater.

3. Compared with ordinary bolts, DIN 912 Allen bolts can achieve higher torque and clamping force.

4. Under the condition of the same clamping force, fewer hexagon socket bolts are used.

5. Fewer drilling and tapping into the mounting surface, saving time and reducing potential damage to components.

6. The use of Allen bolt DIN 912 can reduce the weight of the finished product.

Diameter

M3, M4, M5, M6, M8, M10
Length

5, 6, 8, 10, 12, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 75, 80, 85, 90, 95, 100, 110, 120
